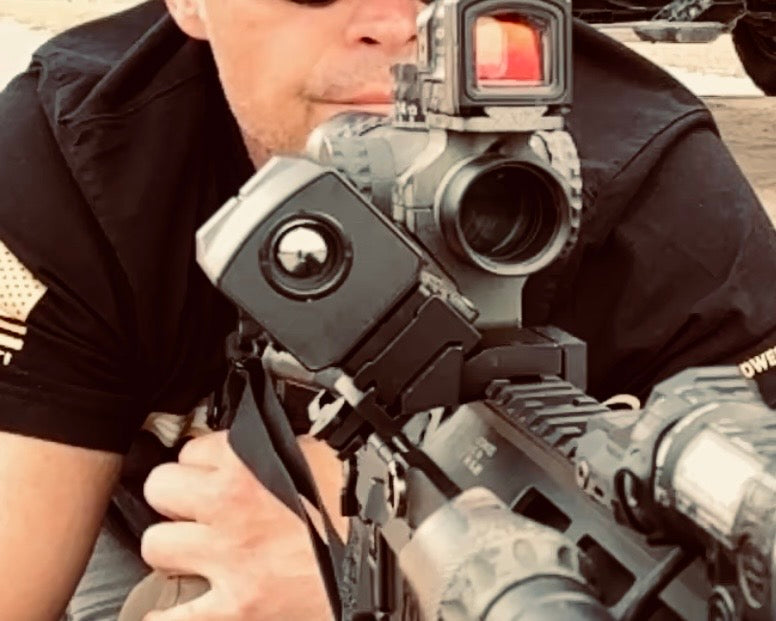

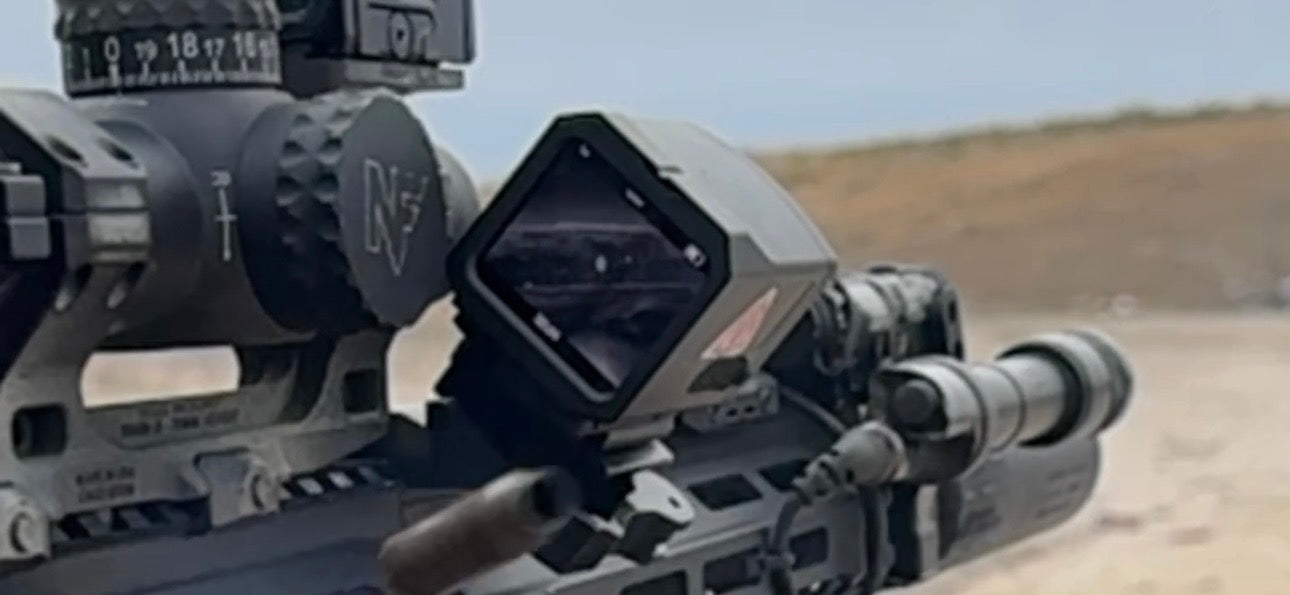

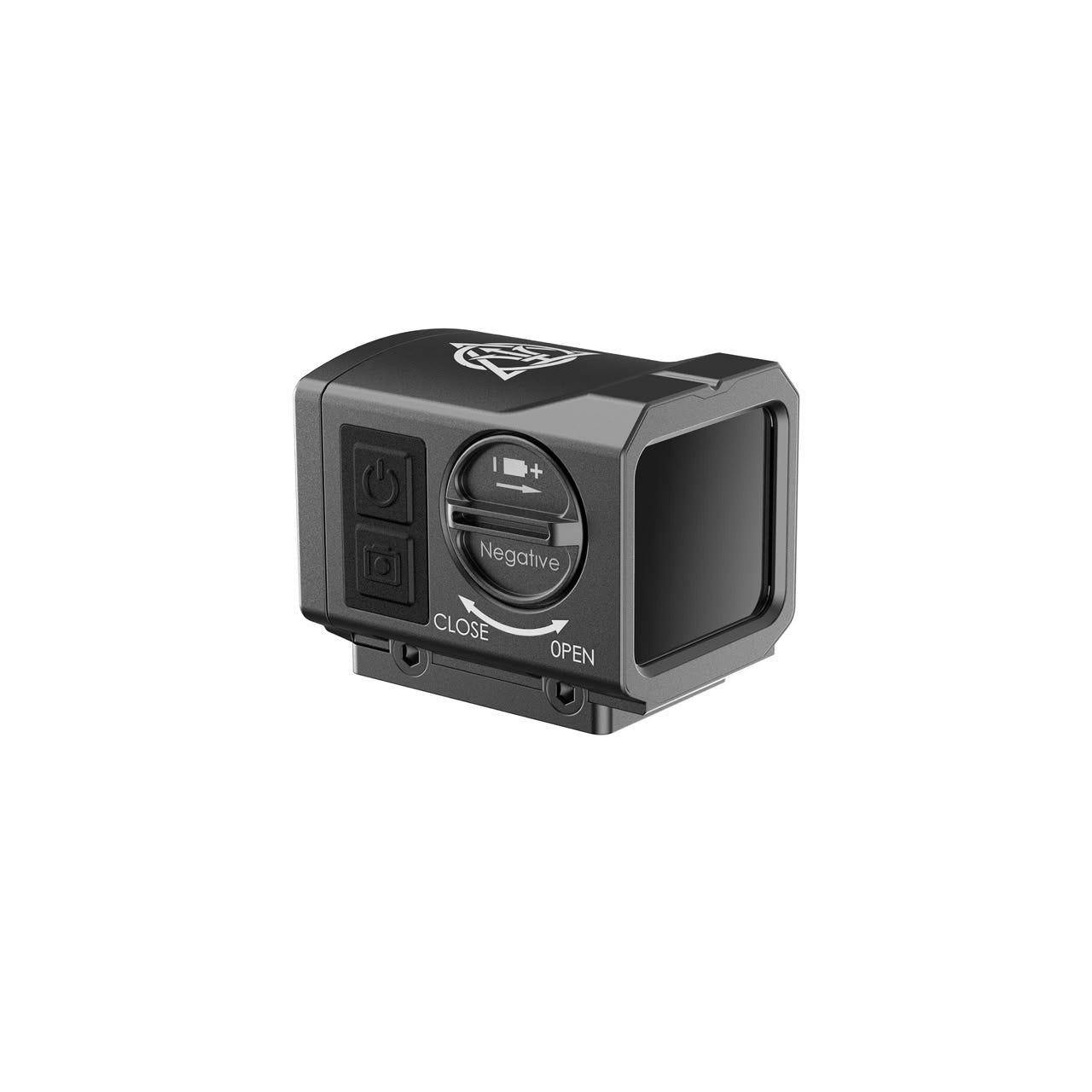

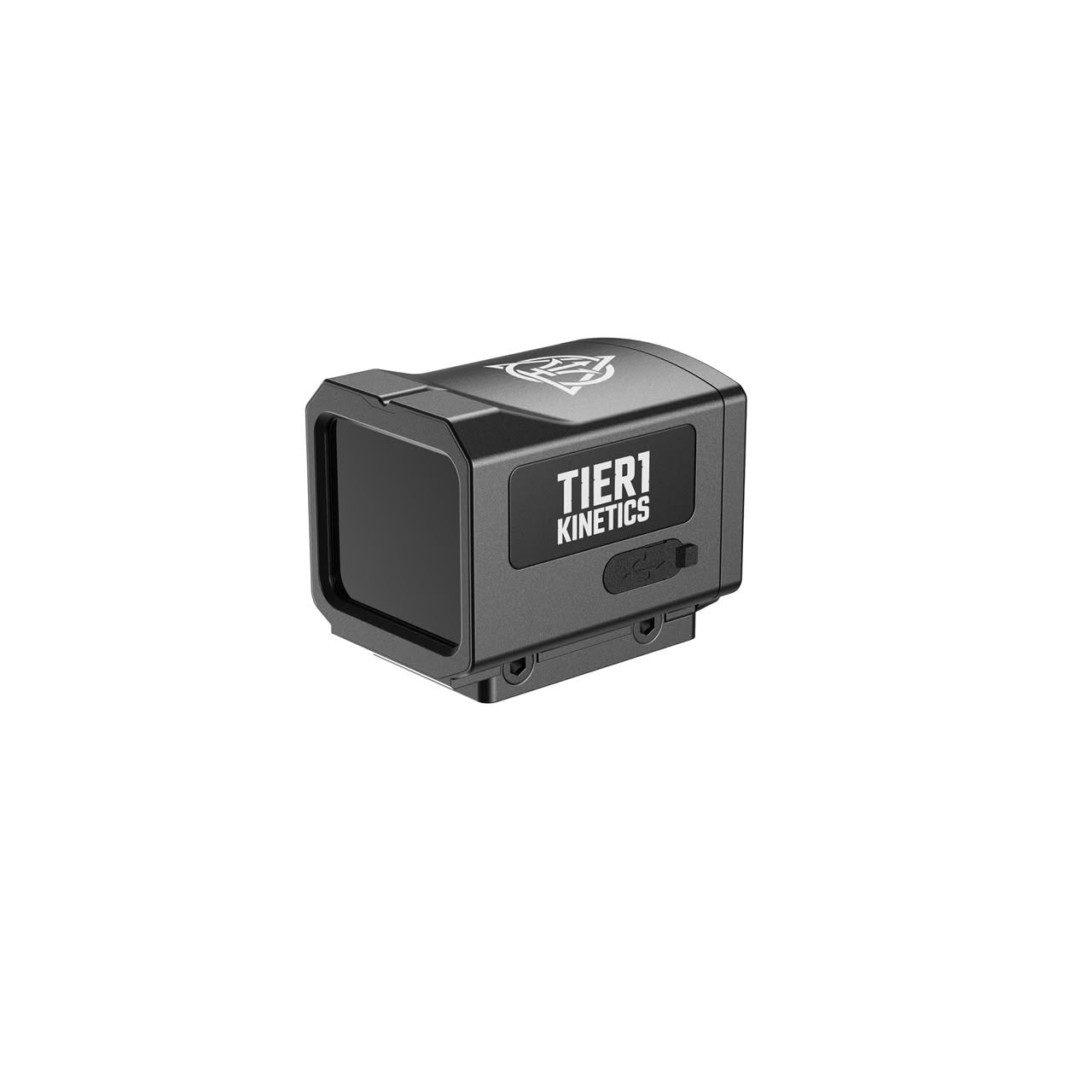

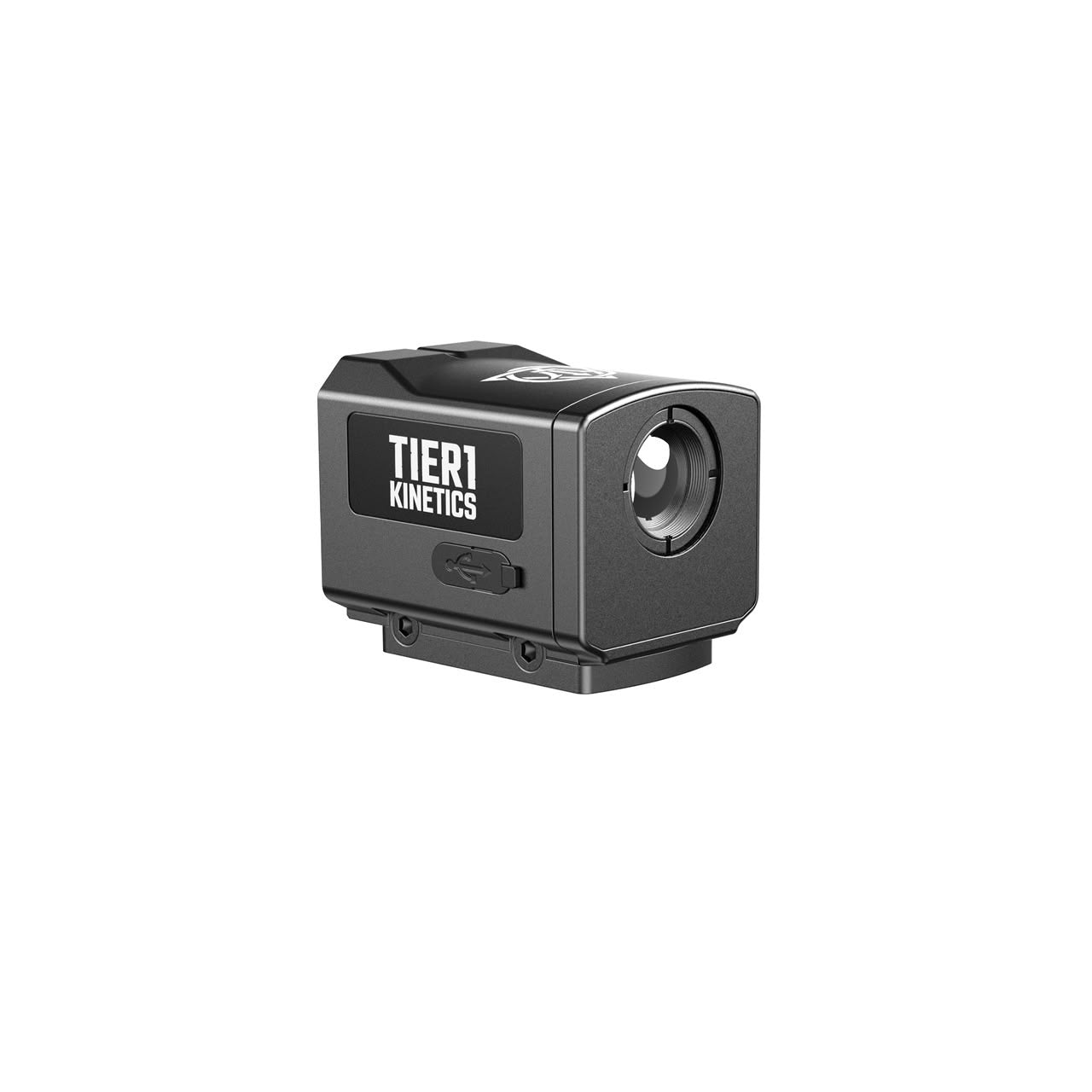

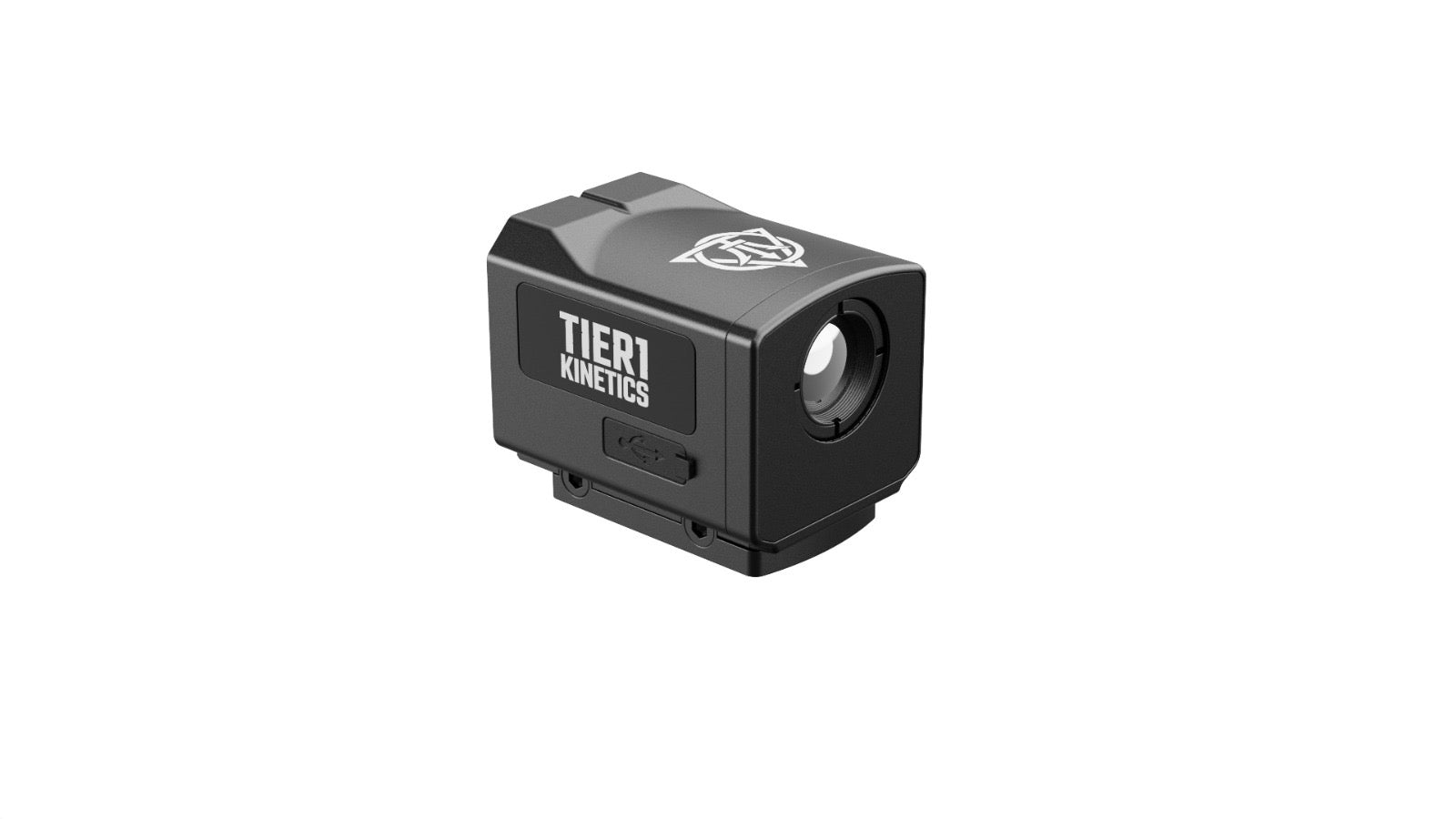

Heat does not hide. The Tier 1 Kinetics T1000 Micro is a compact, touch-controlled weapon-mounted thermal sight (WMTS)—not a pocket monocular with a rail adapter afterthought. It pairs a 256 x 192 thermal detector (49,152 pixels) and a 0.51 in (13 mm) F0.9 lens with a 1.6" display, in a 105 g (3.7 oz), IP66-rated housing. RMR and ACRO mounting adapters are included.
View the T1000 Micro User Manual

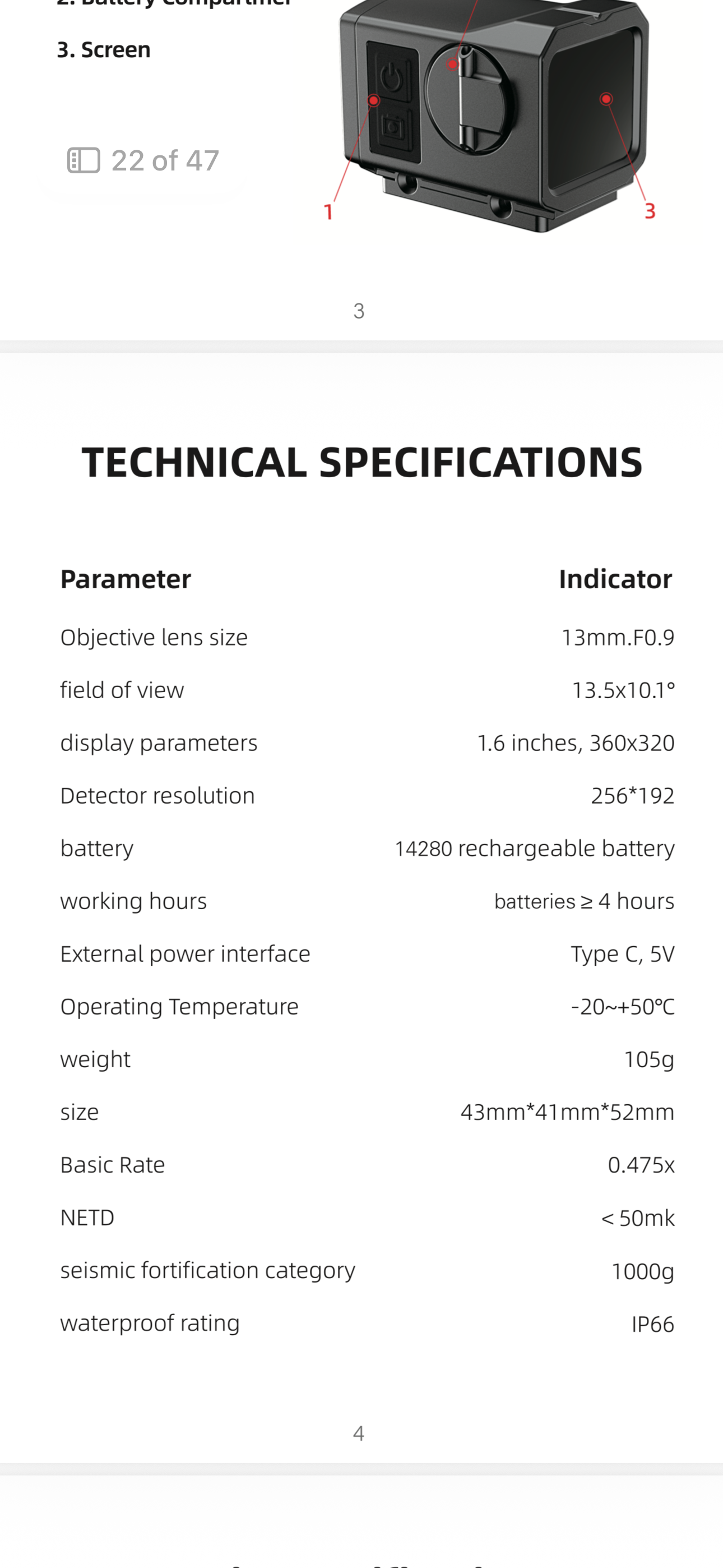

Technical specifications
| SKU |
T1000-TS |
| Detector resolution |
256 x 192 (49,152 pixels) |
| NETD (thermal sensitivity) |
< 35 mK |
| Objective lens |
0.51 in (13 mm), F0.9 |
| Field of view |
13.5° x 10.1° |

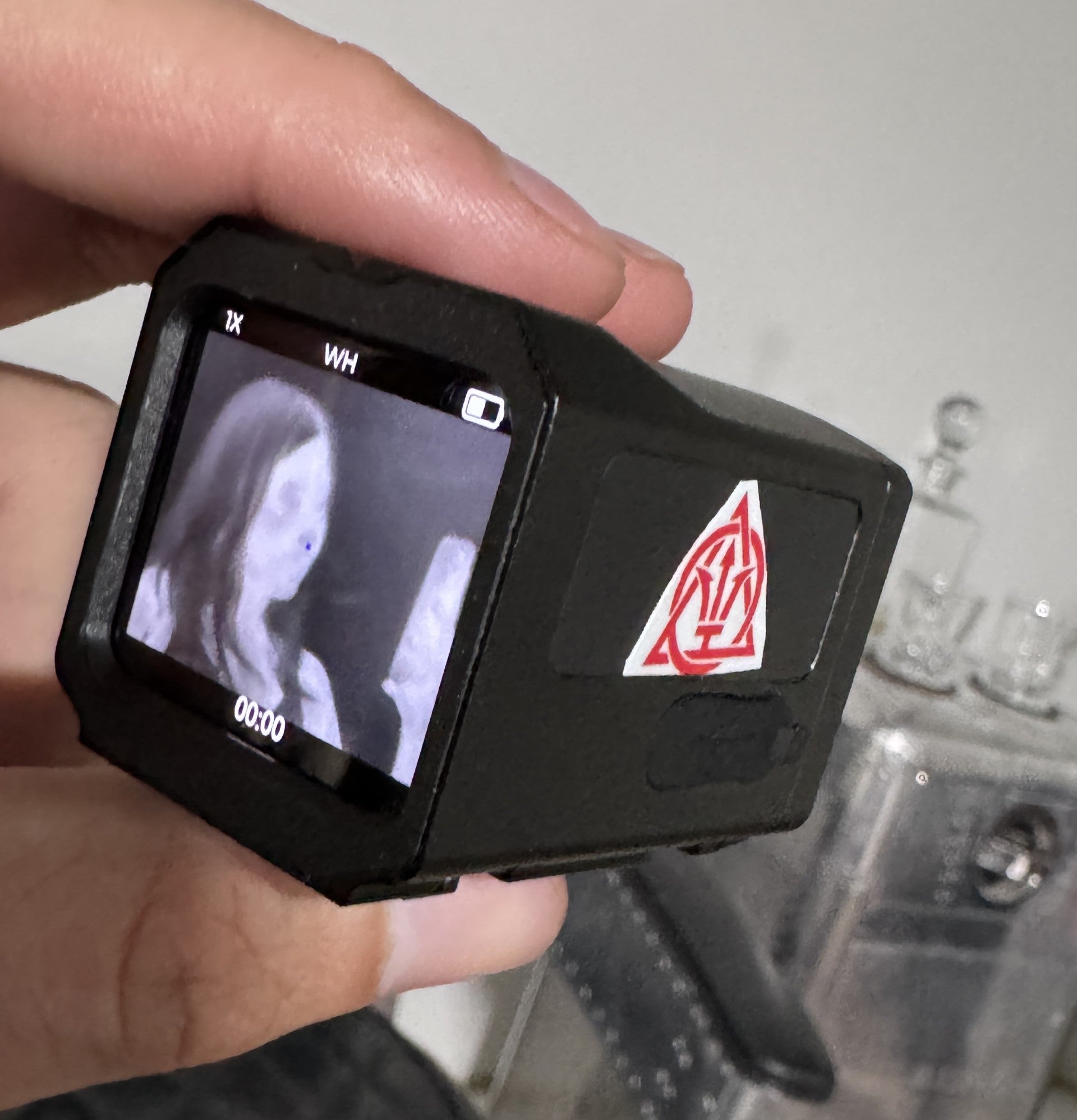

| Display |
1.6", 360 x 320 |
| Base magnification |
0.47x |
| Color palettes |
White Hot, Black Hot, Iron Red, Green Hot, Red Hot |
| Reticle |
Zeroable; 3 reticle styles, 4 reticle colors |
| Battery |
Two 14280 rechargeable cells |
| Runtime |
4 hours or more |
| External power |
USB Type-C, 5 V |
| Operating temperature |
-20 to +50 °C (-4 to +122 °F) |
| Storage temperature |
-10 to +55 °C, relative humidity 80% or less |
| Shock resistance |
1000 g |
| Waterproof rating |
IP66 (dust-tight; powerful water jets) |
| Weight |
105 g (3.7 oz) |
| Dimensions |
1.69 x 1.61 x 2.05 in (43 x 41 x 52 mm) |
| Lead time |
Expect delivery in 4 weeks |
| Warranty |
3 years |
Features

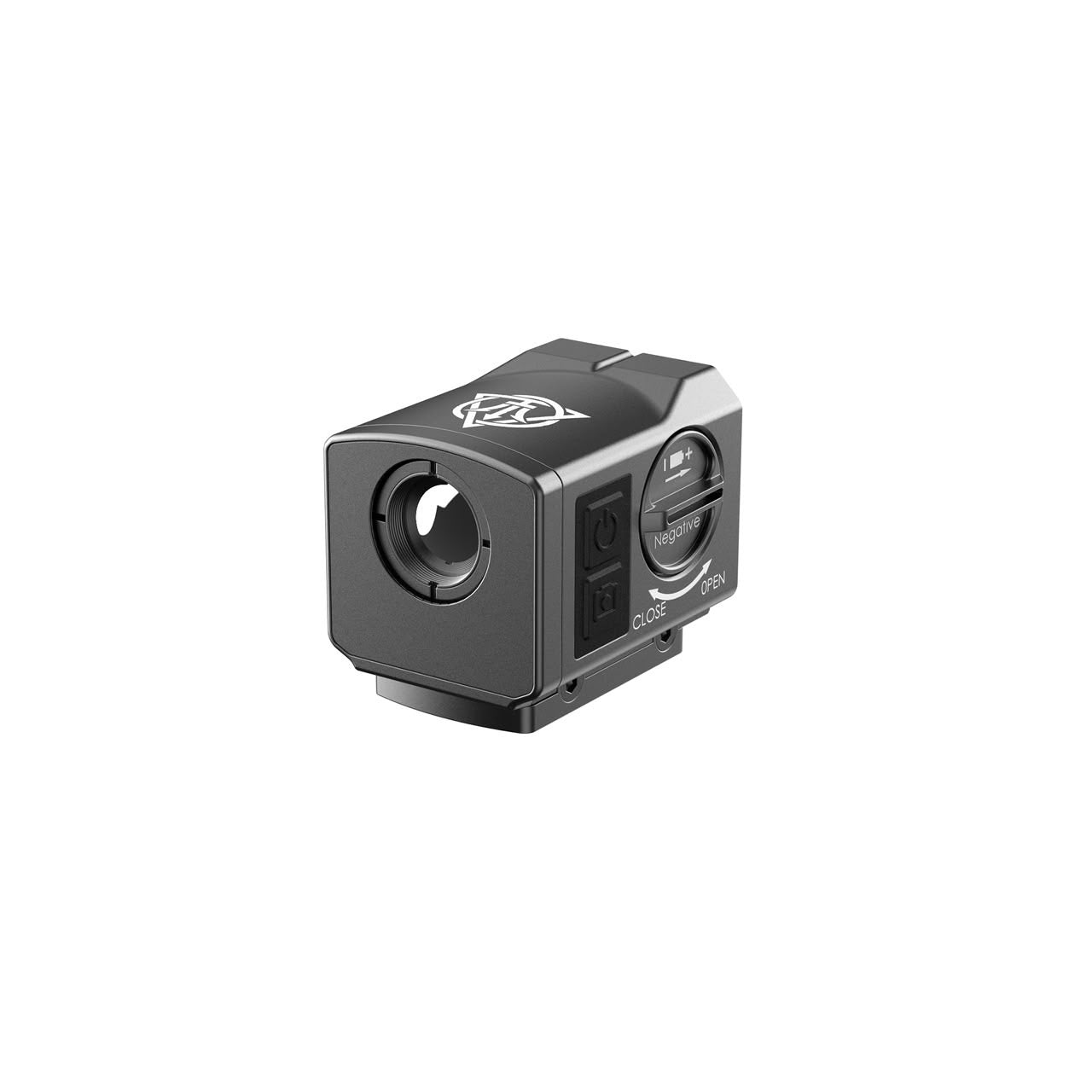

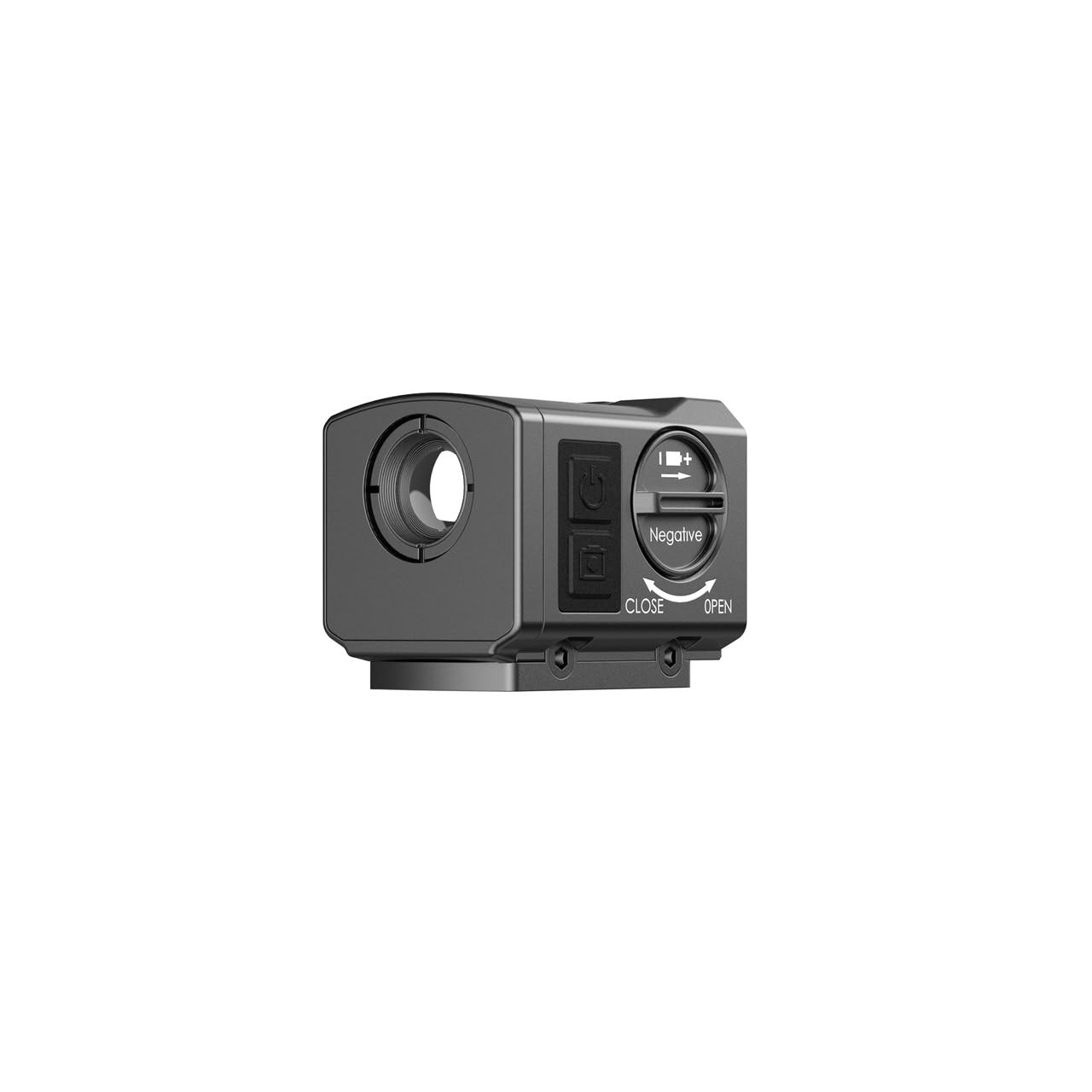

- Touch-screen menu plus three buttons: power / shutter calibration, photo / video, and screen
- Zeroable reticle with 3 reticle styles and 4 reticle colors, plus on-screen zero calibration
- Photo capture and video recording
- DDE image enhancement, contrast and brightness adjustment
- Hotspot tracking and burn protection
- Auto power-off timer, time and date, and selectable menu theme
- Menu languages: English, Chinese and Russian
- RMR and ACRO mounting adapters included

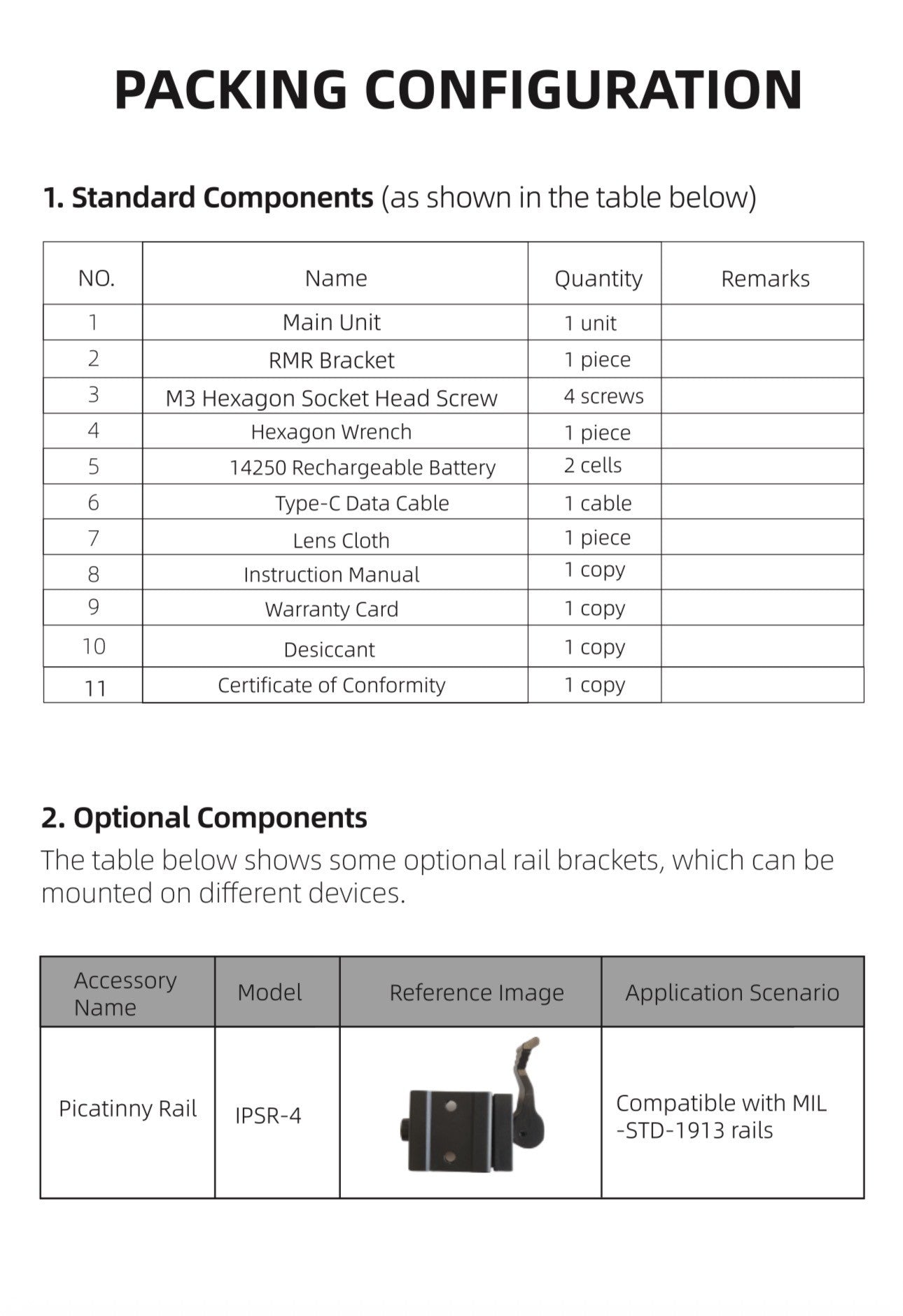

What's in the box
- T1000 Micro thermal sight
- RMR plate
- ACRO plate

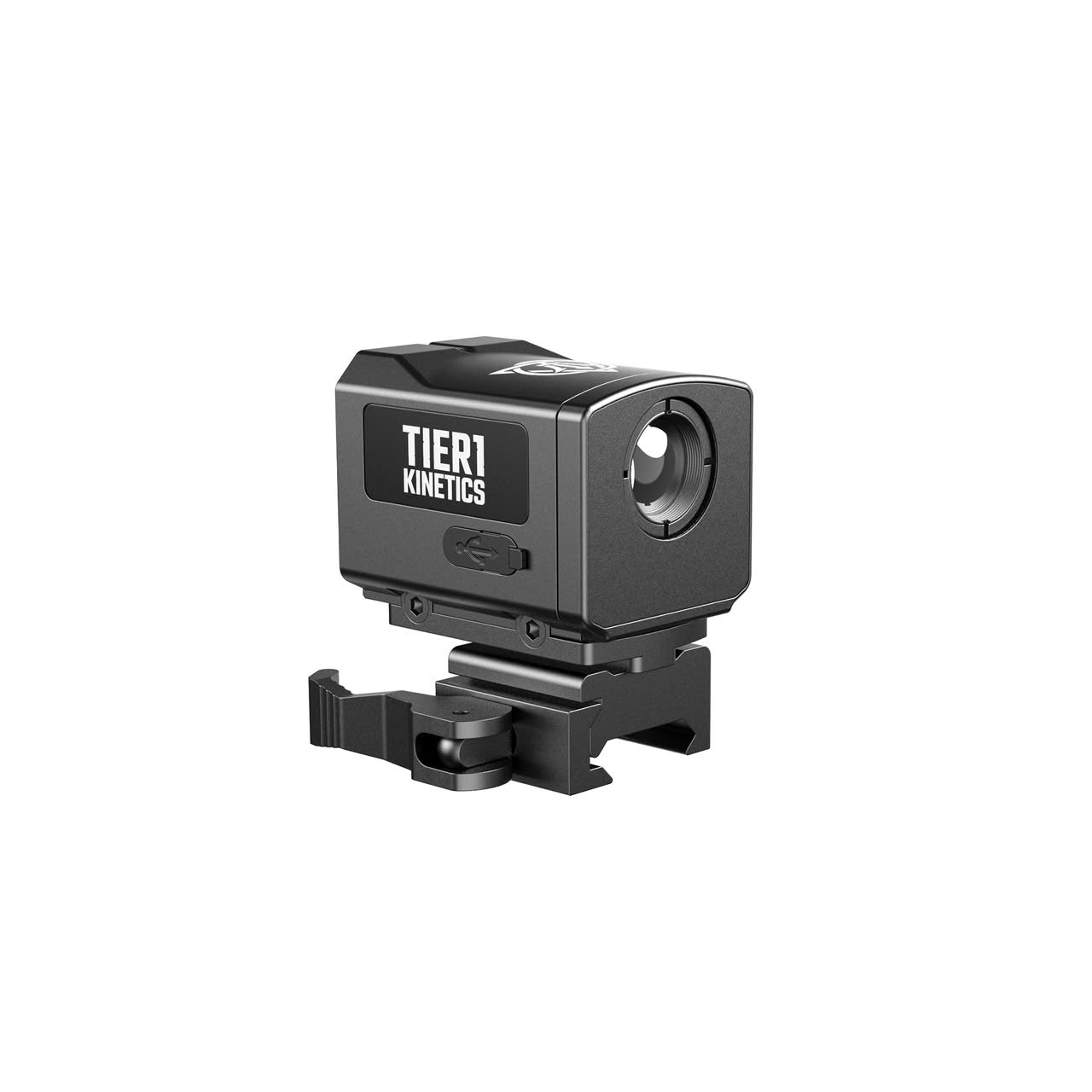

- QD 1913 Picatinny mount
- 45° offset mount
- Proprietary 3D-printed killflash
- 2x 14280 rechargeable batteries
- External charger
- USB Type-C charging cable
- Lens wipe
- Mounting hardware (screws and hex key)
- Instruction manual
- Warranty card
Warranty
3-year warranty.
FAQ
What is the T1000 Micro's thermal resolution?
The T1000 Micro uses a 256 x 192 thermal detector (49,152 pixels) with NETD below 35 mK, a 0.51 in (13 mm) F0.9 objective lens and a 13.5° x 10.1° field of view.
What batteries does it use and how long do they last?
It runs on two 14280 rechargeable cells (both included) and is rated for 4 hours or more of runtime. It also accepts external power through a USB Type-C (5 V) port.
How does it mount?
RMR and ACRO mounting adapters are included. It also ships with a QD 1913 Picatinny mount, a 45° offset mount, and mounting hardware.
Is it waterproof?
Yes. It is rated IP66 (dust-tight; powerful water jets) and operates from -20 to +50 °C (-4 to +122 °F).
Can it record photos and video?
Yes. A short press of the photo/video button takes a photo, and a long press starts or stops recording.
Can I zero it?
Yes. The menu includes zero calibration, with 3 reticle styles and 4 reticle colors.
What color palettes are available?
White Hot, Black Hot, Iron Red, Green Hot and Red Hot.
What is the lead time?
Expect delivery in 4 weeks.
What warranty does it include?
A 3-year warranty.
